RELEAF ONE
RELEAF ONE
Sound-Absorbing
Acoustic Wall Panel

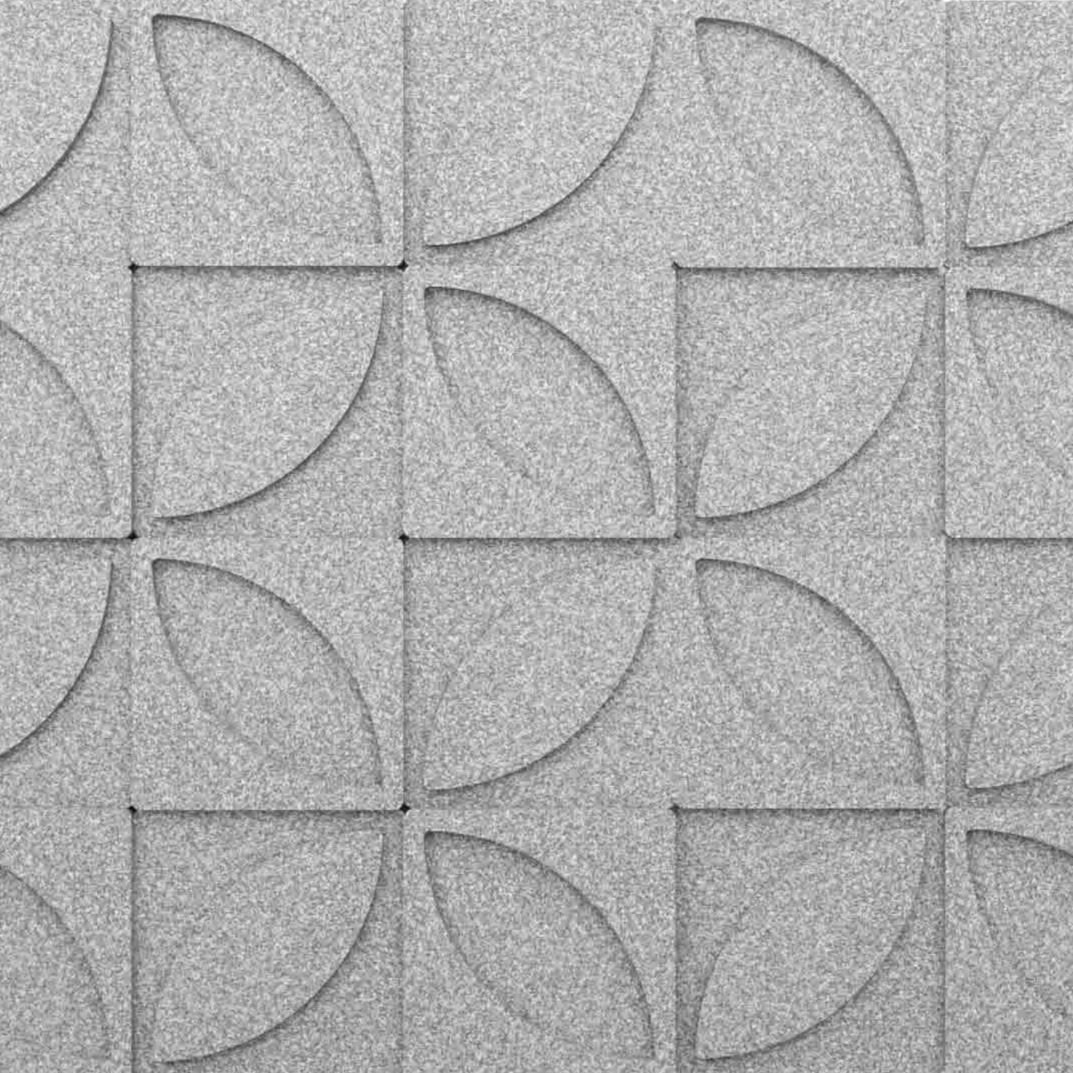

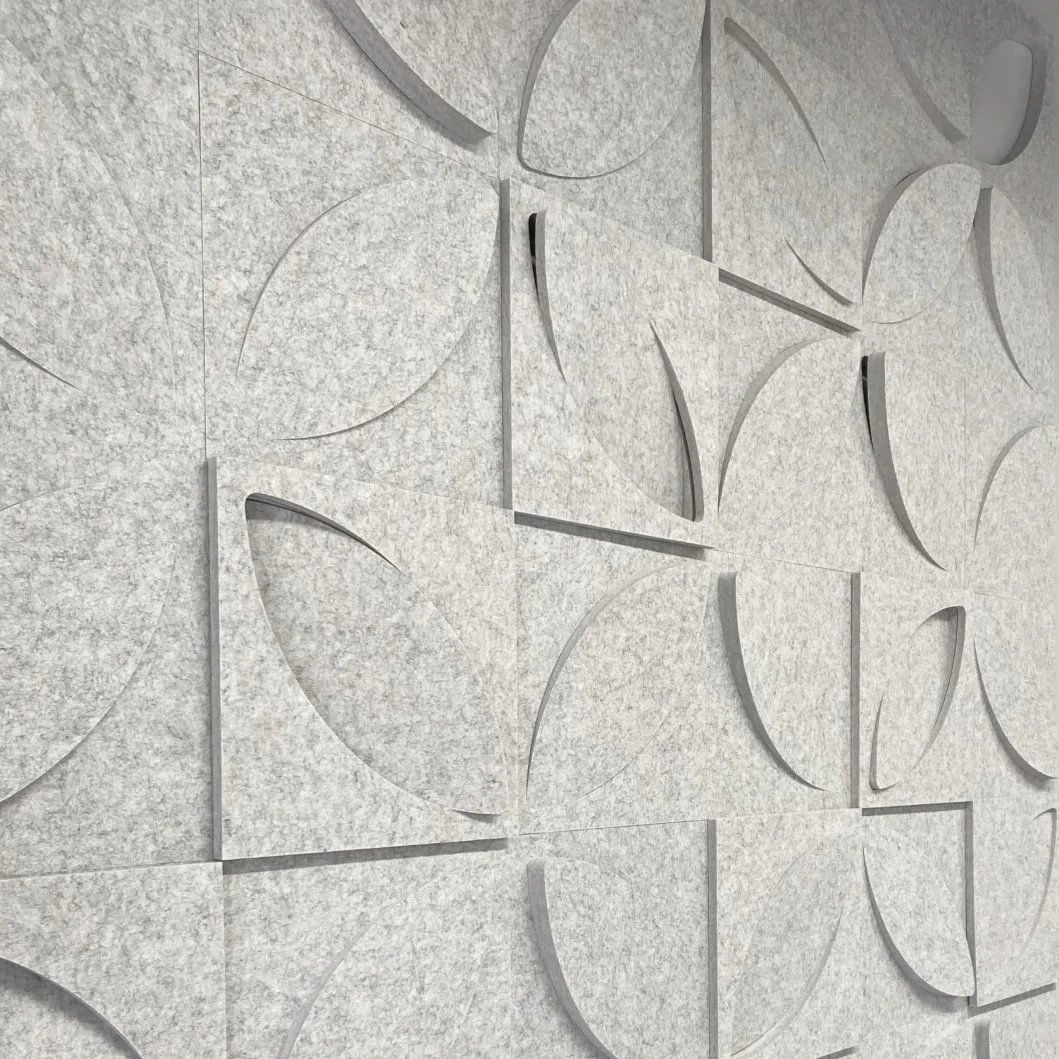

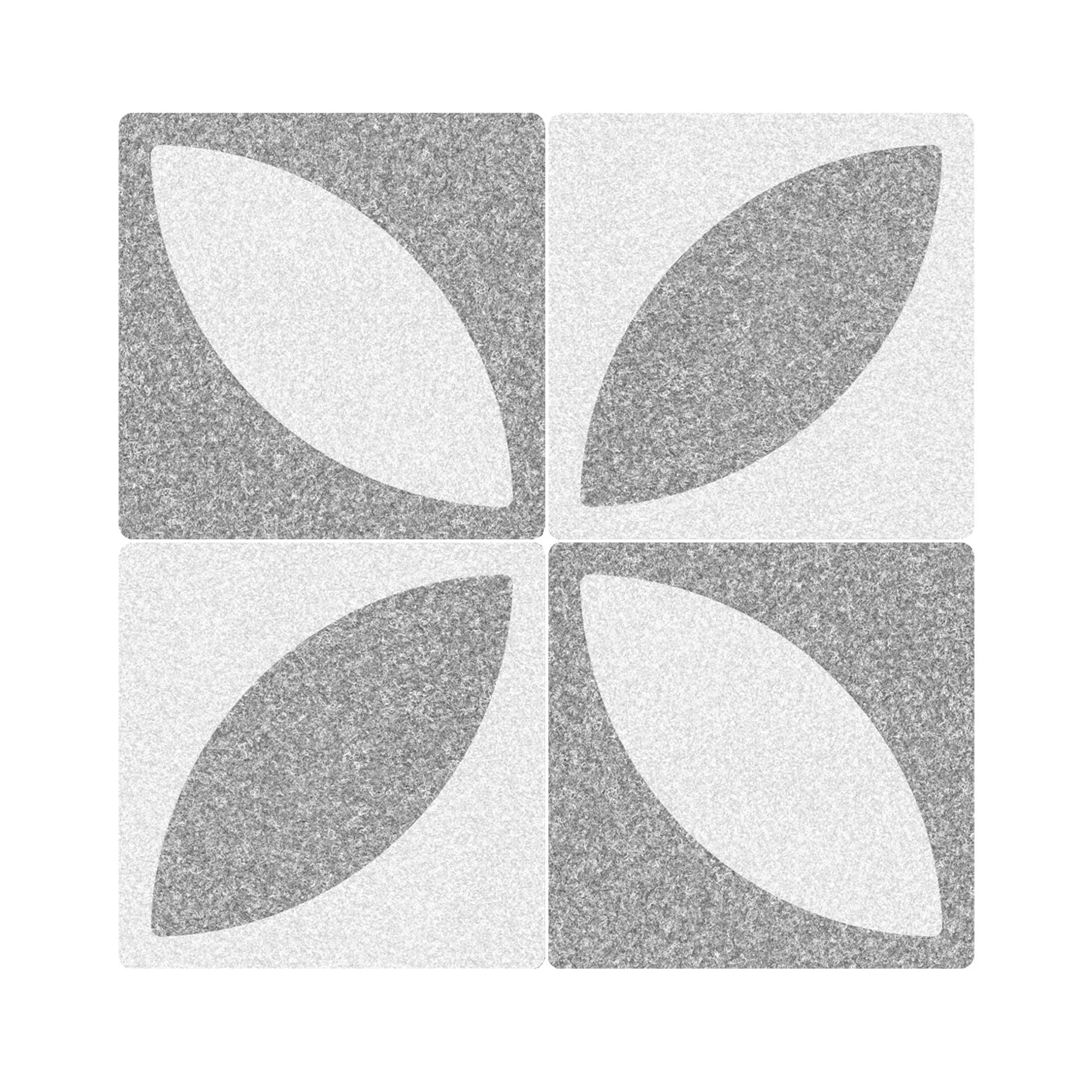

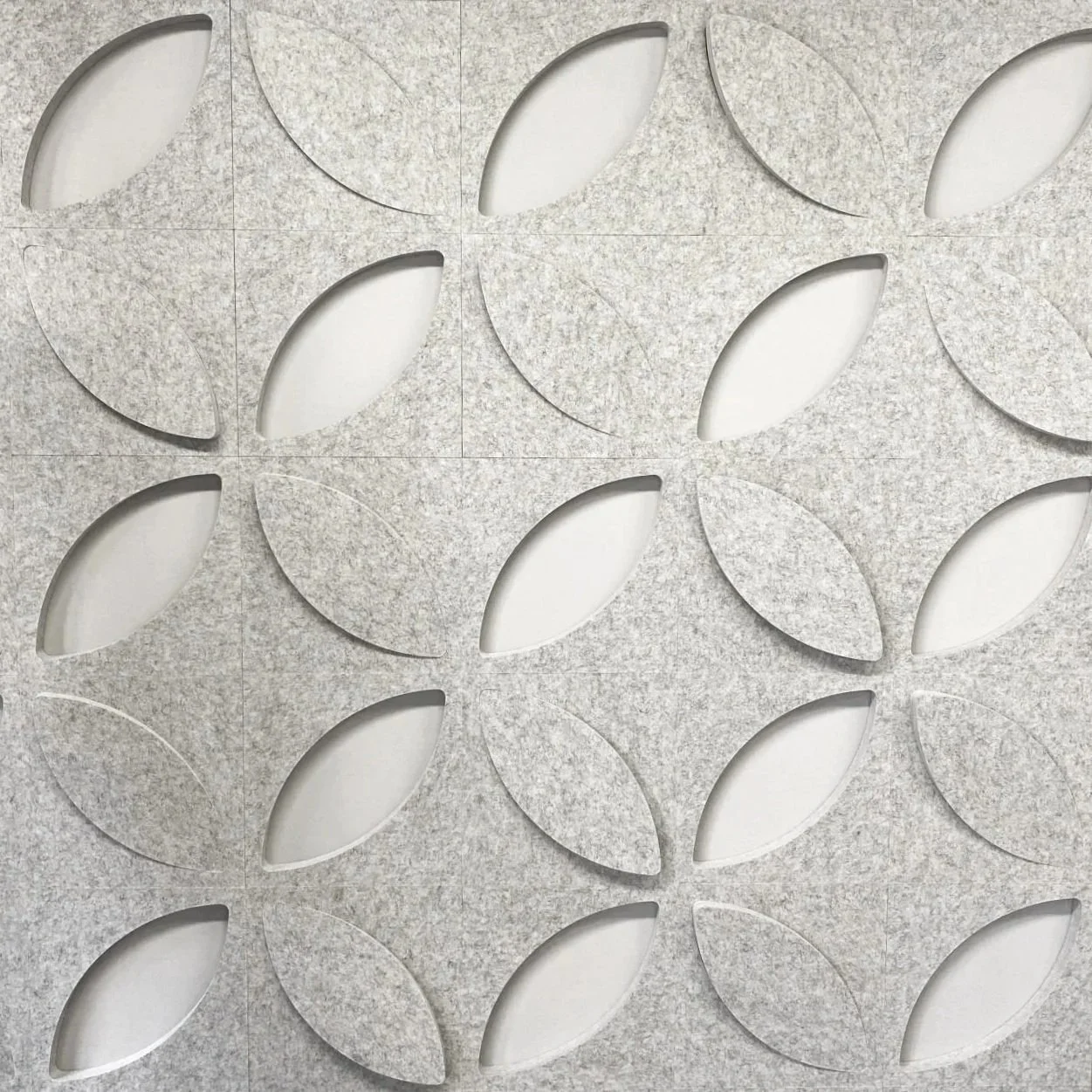

RELEAF ONE is a visually striking and elegant modular acoustic wall tile with 3D elements. This subtle yet decorative design is available in 20 colours and varying tile sizes to create a wide variety of design options.
Leaf + Relief = RELEAF!
This popular design is unique to acou.space and will enhance any space visually whilst reducing unwanted noise within the space.

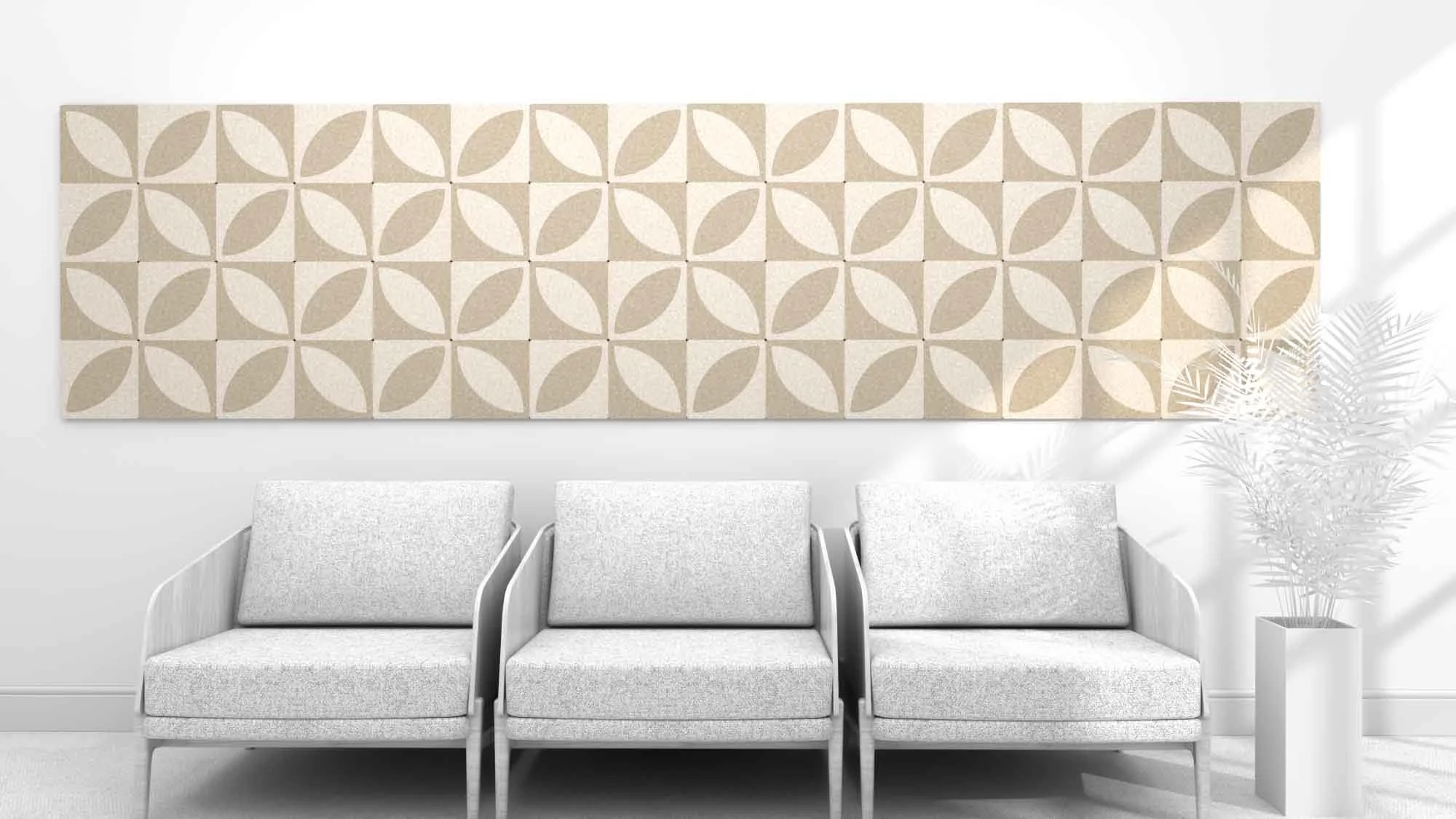

RELEAF ONE acoustic wall panels are suitable for use in offices, meeting and board rooms, sound booths, podcast studios, breakout and reception areas. RELEAF is also excellent for use in residential settings!
How will you design RELEAF acoustic wall panels to reduce reverberation and echo?
Specifications
Size
Dimensions (H × W × D) in mm:
300 × 300 × 24
400 × 400 × 24
600 × 600 × 24
Fixings
Adhesive
Material
Composition: 100% PET (65% post-consumer bottle flake)
Fully recyclable
Fire Rating
EN13501: B-s1, d0
Panel Design
Multidirectional modular layout
Intermediate to experienced skill level required for fitting
Product Properties
Optional antiviral/antimicrobial finish
Weight per m²:
12mm: 2.4kg
24mm: 4.8kg
Semi-rigid, non-toxic, non-allergenic, non-irritating
Stable and easy to clean
Acoustic performance: Class A / E
Fire retardant: EN13501 B-s1,d0
VOC emissions: <0.02mg/m² (very low)
Formaldehyde: 0.00μg/g (none)
OEKO-TEX® Standard 100 – Class 1 (free from harmful chemicals)
Acoustic Performance
24mm Panels:
No air gap: αw 0.78 / NRC 0.75
50mm air gap: αw 0.98 / NRC 0.90
200mm air gap: αw 0.99 / NRC 0.90
Acoustic Class: C / A
