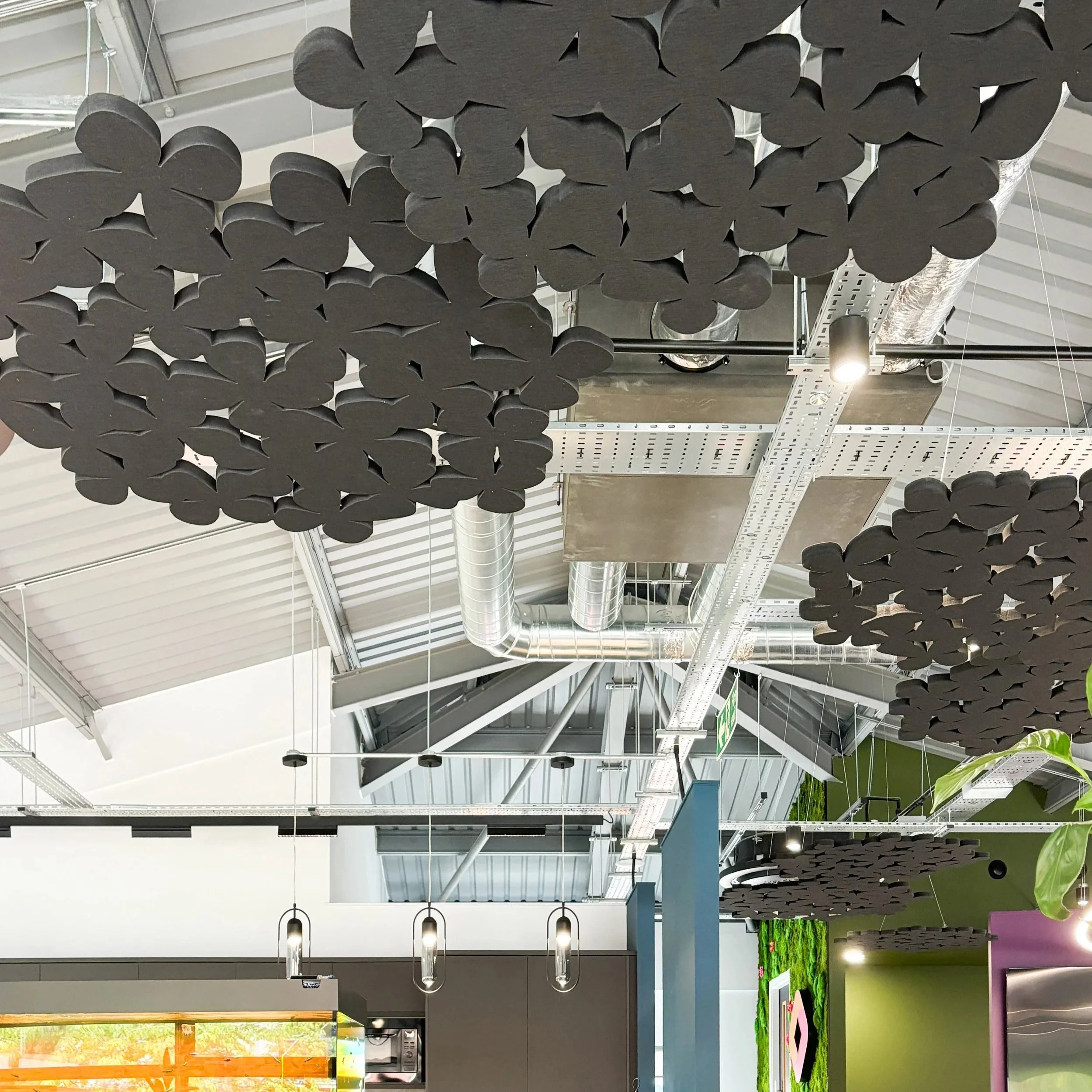

suspended raft acou.felt

blossom® raft, inspired by nature’s spring season, is a decorative sound-absorbing acoustic panel targeting interior spaces such as workspaces, educational facilities, breakout and reception spaces, and hospitality environments.

each blossom® acoustic raft can be suspended from modular, MF or concrete ceilings to absorb surrounding ambient noise within public and commercial spaces.

did you know?

blossom®'s was originally called 'elderflower' as this was the design generator for all the blossom® designs. blossom® combines eye catching aesthetics together with practical functionality to absorb sound.

blossom® adds elegance, texture, and fun (!) into your space whilst reducing localised sound making it an excellent choice for:

hospitality | workspaces | educational facilities | reception | breakout | public spaces | commercial environments

size:
W900 Dia 900 H24 mm
W1200 Dia 1200 H24 mm

custom sizes available

materials:
› composition 100% PET
› 65% post-consumer bottle flake

properties:
› antiviral/antimicrobial finish option
› fully recyclable
› weight Msq: 12mm 2.4kg 24mm 4.8kg
› semi-rigid, non-toxic, non-allergenic, non-irritating
› stable and easy to clean
› acoustic performance Class A / E
› VOC emissions: <0.02mg / Msq (very low)
› formaldehyde 0.00UG/g (none)
› okeo tex: Standard 100 - class 1 (free from harmful chemicals)
› easy to fit

fire retardant:
› EN13501 B-S1, d0

absorption coefficients
› 200mm air gap Aw 0.9 and NRC 0.85

® registered design
© designed by acou.space

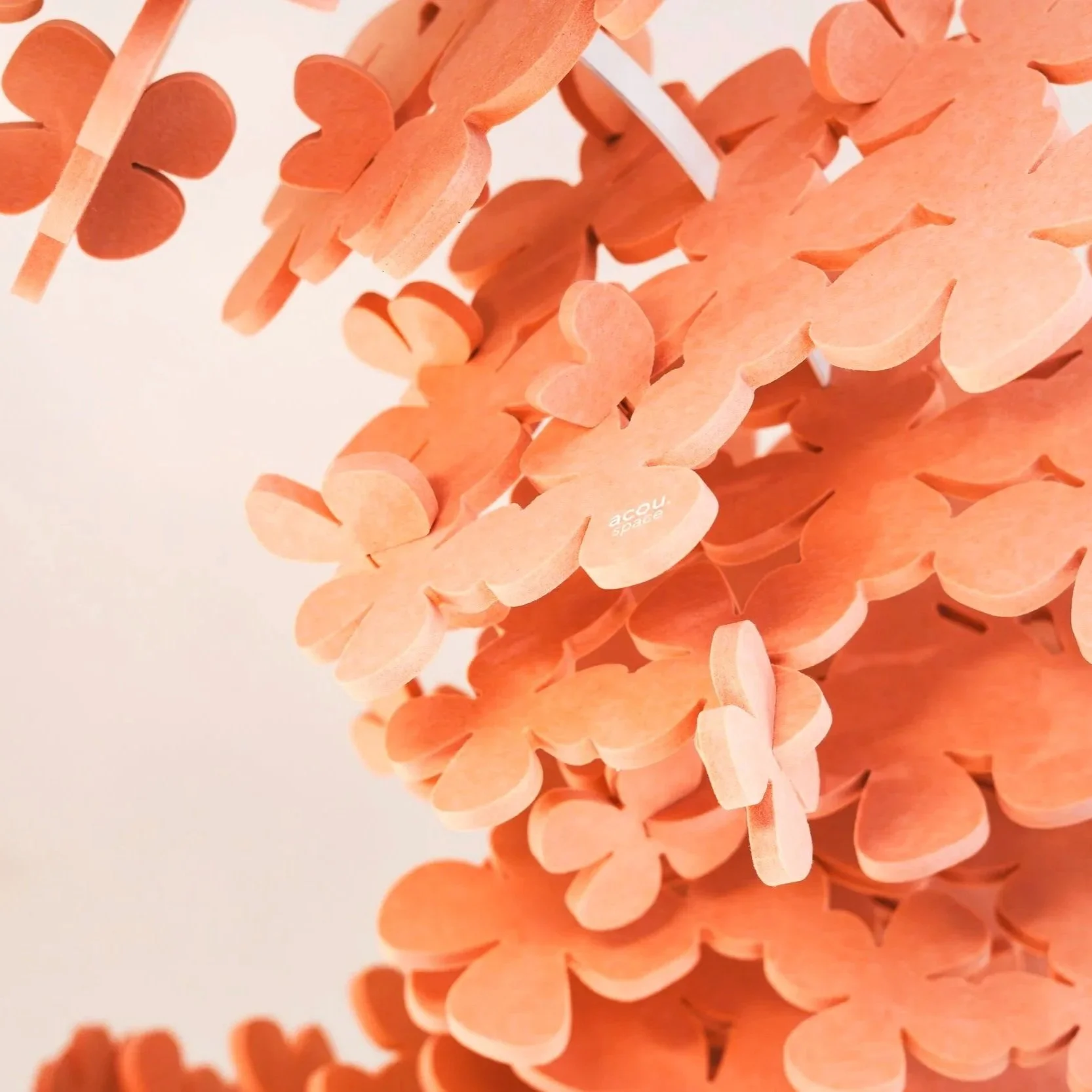

Blossom® baffle is an effective suspended acoustic baffle designed and supplied by acou.space.

16nr. easy-to-fit decorative baffles supplied in 1750mm lengths including hanging kits and available in 30 colours from Pink to Olive and many colours in between.

Waste is minimised with design interest optimised by utilising acou.felt that would otherwise be thrown away. Designed florets cut from the waste can be simply inserted onto / within any of the baffles to afford a unique 3D effect to the completed baffles when hung. blossom® offers a unique and dimensional element, making a sculptural centrepiece.

Each blossom® baffle is an acoustic sound absorber for ceiling suspension with unwanted sound being trapped between the decorative blades.

With an exceptional blend of aesthetics and functionality, the blossom baffle absorbs sound whilst adding elegance, texture, and delight into your space.

Localised sound is reduced, making it an excellent choice for:

Hospitality | workspaces | educational facilities | reception | breakout | public spaces | commercial environments

Size:

14 nr. Individual baffles
Each sized: H 450 W 500 D 12mm

Total baffle dimension when fitted:
L 1200 H 560H W520mm

Baffles fitted at aprox 100mm centres

materials:
› acou.felt composition 100% PET
› 65% post-consumer bottle flake

properties:
› antiviral/antimicrobial finish option
› fully recyclable
› weight msq: 12mm 2.4kg 24mm 4.8kg
› semi-rigid, non-toxic, non-allergenic, non-irritating
› stable and easy to clean
› acoustic performance Class A / E
› VOC emissions: <0.02mg / Msq (very low)
› formaldehyde 0.00UG/g (none)
› okeo tex: Standard 100 - class 1 (free from harmful chemicals)
› easy to fit
› each panel weighs 0.4kg including fixings

fire retardant:
› EN13501 B-S1, d0

absorption coefficients
› 200mm air gap Aw 0.9 and NRC 0.85
class A

® registered design
© designed by acou.space

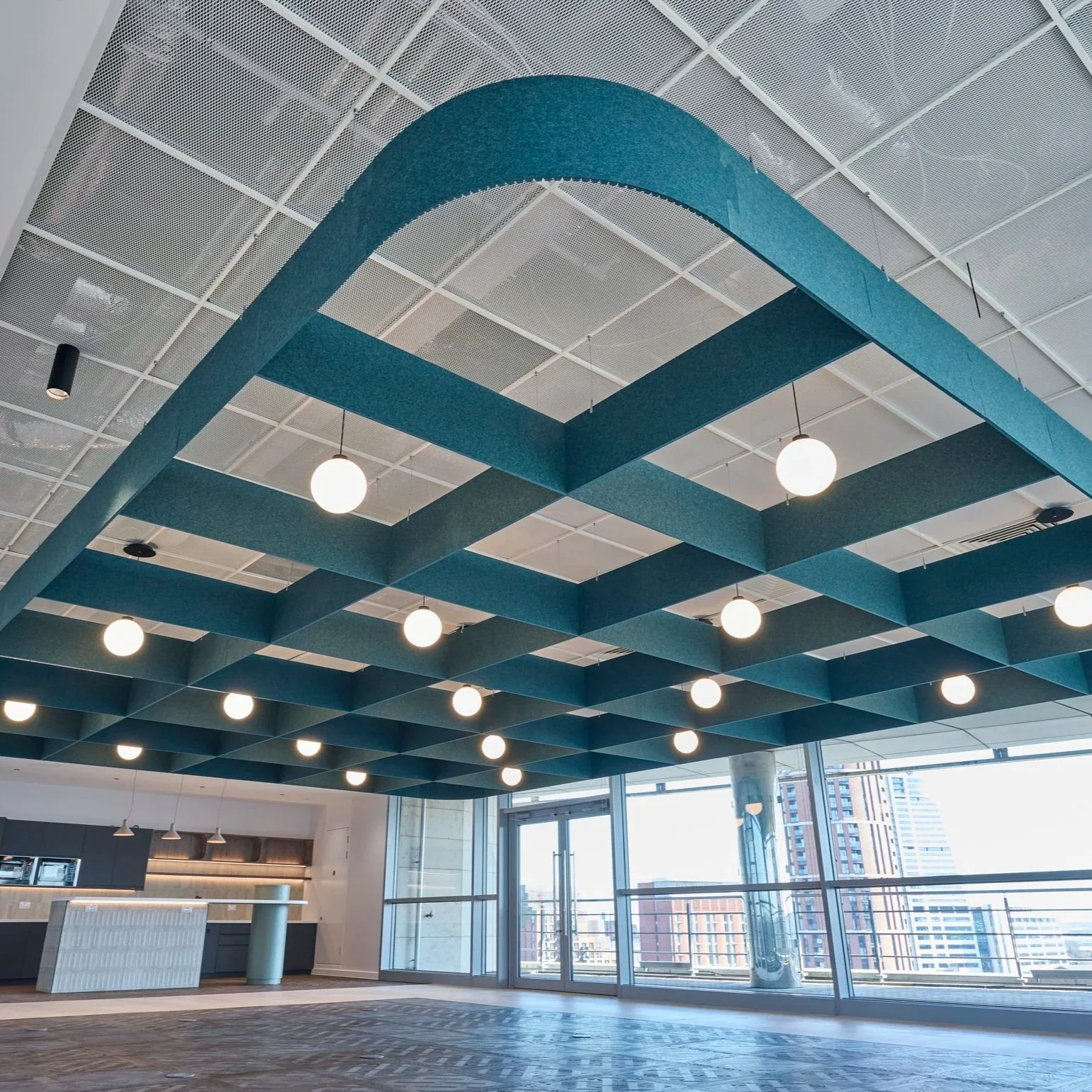

For Modular Ceiling Grids

Meander is an acoustic baffle system that hangs in gentle, flowing curves, adding a calm sense of movement to open-plan offices, workspaces, and collaborative areas. Designed by acou.space for modular ceiling grids, it can also be customised for non-standard ceilings. Meander helps control reverberation and absorb sound, while making ceilings a standout architectural feature.

Suspended acoustic panels are stylish screens and room dividers that help zone open-plan spaces while keeping interiors bright.

These decorative panels create quieter, more comfortable spaces and are a simple alternative to building partition walls. Our dividers can be suspended from plastered or modular ceilings.

Suspended screens divide areas, absorb sound, and add a decorative touch to open-plan spaces.

Ideal for workspaces, meeting rooms, offices, restaurants, hotels, and residential spaces.

We create custom screens to meet your project needs. Tell us your requirements for a tailored acoustic solution.

The Honesty Raft™ is an entirely new form of acoustic raft, organic in form and responsible in materiality. Wrapped in 100% regenerative New Zealand wool with a 100% British wool core, it blends natural function with understated beauty.

Inspired and reflecting the delicate, translucent shapes of dried Honesty seed pods, its circular raft design introduces calm, floating geometry to ceilings. Whether suspended solo or arranged in sculptural constellations, the Honesty Raft™ softens sound and space with elegance.

Thoughtfully conceived, it's more than an acoustic panel - Honesty is a sensory experience. Crafted from nature, for quieter, more harmonious interiors.

Specifications

Size (mm)
Dia 900 aprox 100

Fixings:
› Suspension

Material:
Traceable wool
› Outer: 100% new Zealand regenerative wool
› Inner: 100% British wool

Properties:
› Naturally sound absorbent
› Naturally fire retardant
› Anti-Allergenic and Air Purifying
› Carbon Storage
› Latent Heat Release
› Odour resistance
› Hypoallergenic
› Natural, Renewable and Biodegradable

Additional Information:
› Basic / intermediate skill required for fitting

Designed by acou.space™

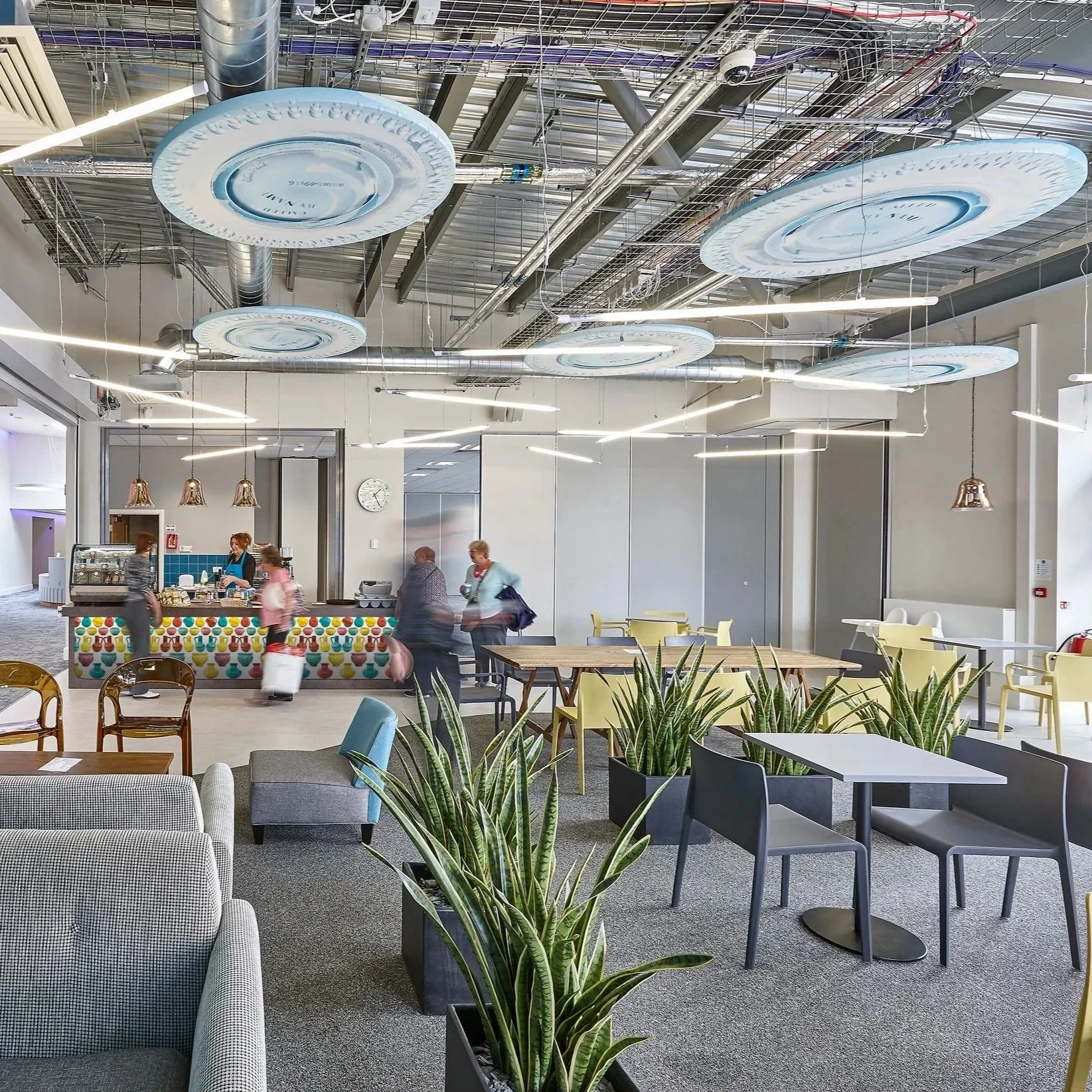

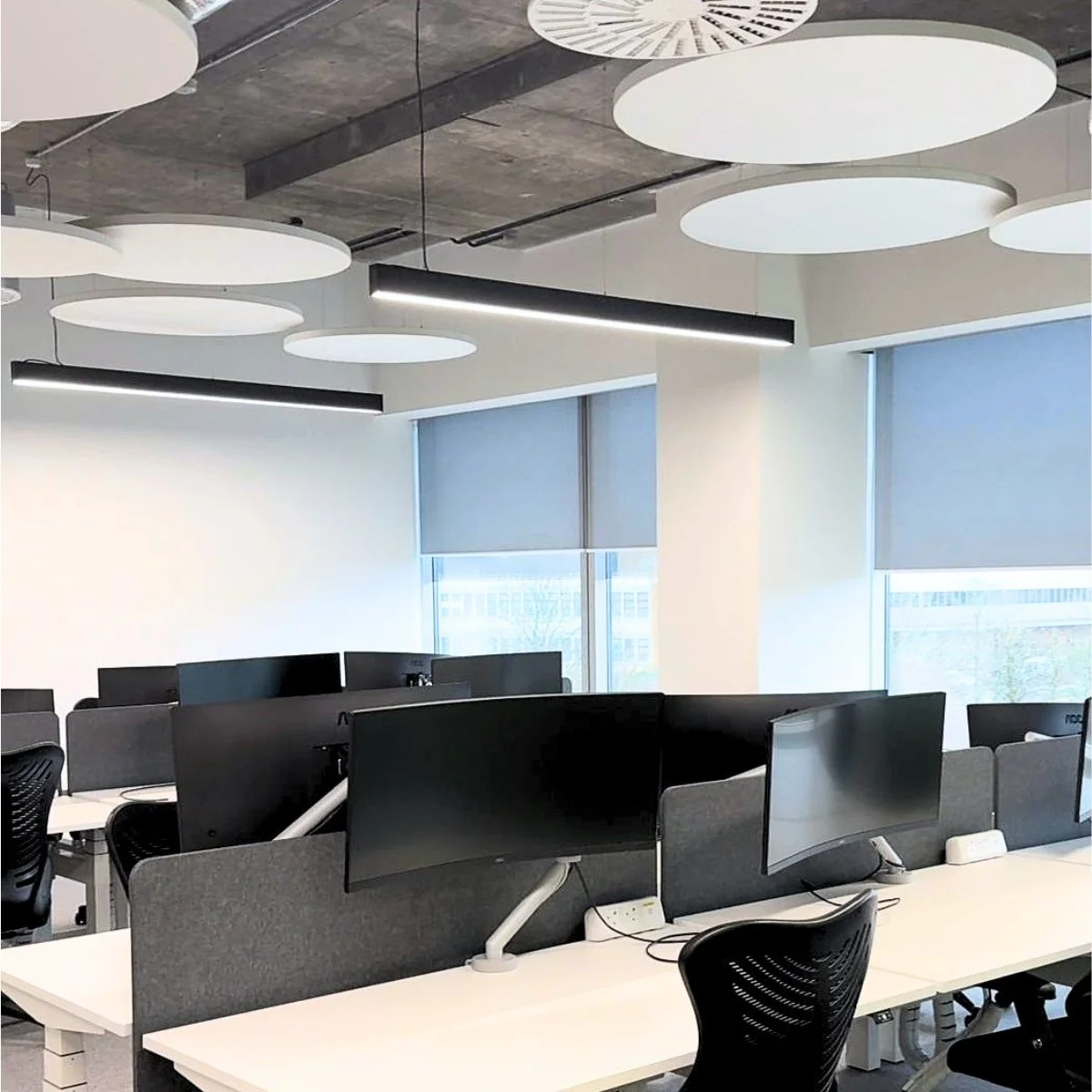

Suspended ceiling rafts are highly effective at absorbing noise in open commercial settings, especially where ceilings are high and localised sound control is required. They are very effective acoustic solutions.

Our acoustic ceiling rafts are fabricated from a high-quality acou.peace core with various plain or printed fabric options from which to choose to cover the panels. Subtle or decorative options are available.

All fabrics are fire retardant and textural wools, and printed fabrics take suspended acoustic rafts to another level altogether!

Suitable for any commercial situation. Decorative sound-absorbing panels at their best!

Size:
Standard sizes
600 x 600 × 40
1200 x 600 × 40
1200 x 1200 × 40
1800 x 1200 × 40
2400 x 1200 × 40
Length x Height x Depth

Fixing Options:
Suspension fixings for MF, concrete and modular ceilings

Fire Retardency:

B-S1, d0 + FR fabric

Acoustic Absorption Classification:
› Class C, Class A

Designed by acou.space ©

Suspended ceiling rafts are highly effective at absorbing noise in open commercial settings, especially where ceilings are high and localised sound control is required. They are very effective acoustic solutions.

Our acoustic ceiling rafts are fabricated from a high-quality acou.peace core with various plain or printed fabric options from which to choose to cover the panels. Subtle or decorative options are available.

All fabrics are fire retardant and textural wools, and printed fabrics take suspended acoustic rafts to another level altogether!

Suitable for any commercial situation. Decorative sound-absorbing panels at their best!

To order: Select your own design at 300dpi or utilise FLORAL GREEN design. Select raft size.

Size:
› Standard sizes
600 x 600 × 40
1200 x 600 × 40
1200 x 1200 × 40
1800 x 1200 × 40
2400 x 1200 × 40
Length x Height x Depth

Variables include:

• FLORAL GREEN print design

• Print of your own choice

• Plain Fabric


Fixing Options:
› Suspension fixings for MF, concrete and modular ceilings

Additional Information:
› High-quality acou.peace core
› FlORAL GREEN print
› Custom print

Fire Retardency:
› B-S1, d0 + FR fabric

Acoustic Absorption Classification:
› Class C, Class A

Designed by acou.space ©

These printed acoustic ceiling baffles are fabricated from quality materials to create unique sound absorbers to your own design. Utilise the FLORAL GREEN print design, or select one of your own print designs to create custom-printed Class A suspended acoustic baffles.

Variables include:

• FLORAL GREEN print design

• Print of your own choice

• Plain Fabric

Subtle or decorative options.

Printed acoustic baffles are particularly suited to public and commercial spaces where services where ceilings are high or services to ceilings are exposed.

Size:
› Standard sizes +
L1200 x H200
L1200 x H300
L1800 x H200
L1800 x H300
L2400 x H200
L2400 x H300
Length Width mm
› Bespoke
› Depth 40mm

Fixing Options:
› Suspension fixings for MF, concrete and modular ceilings

Additional Information:
› High-quality mineral wool core
› FLORAL GREEN print option
› Custom printed design

Fire Retardancy:
› B-S1, d0

Acoustic Absorption Classification:
› Class A, Class C

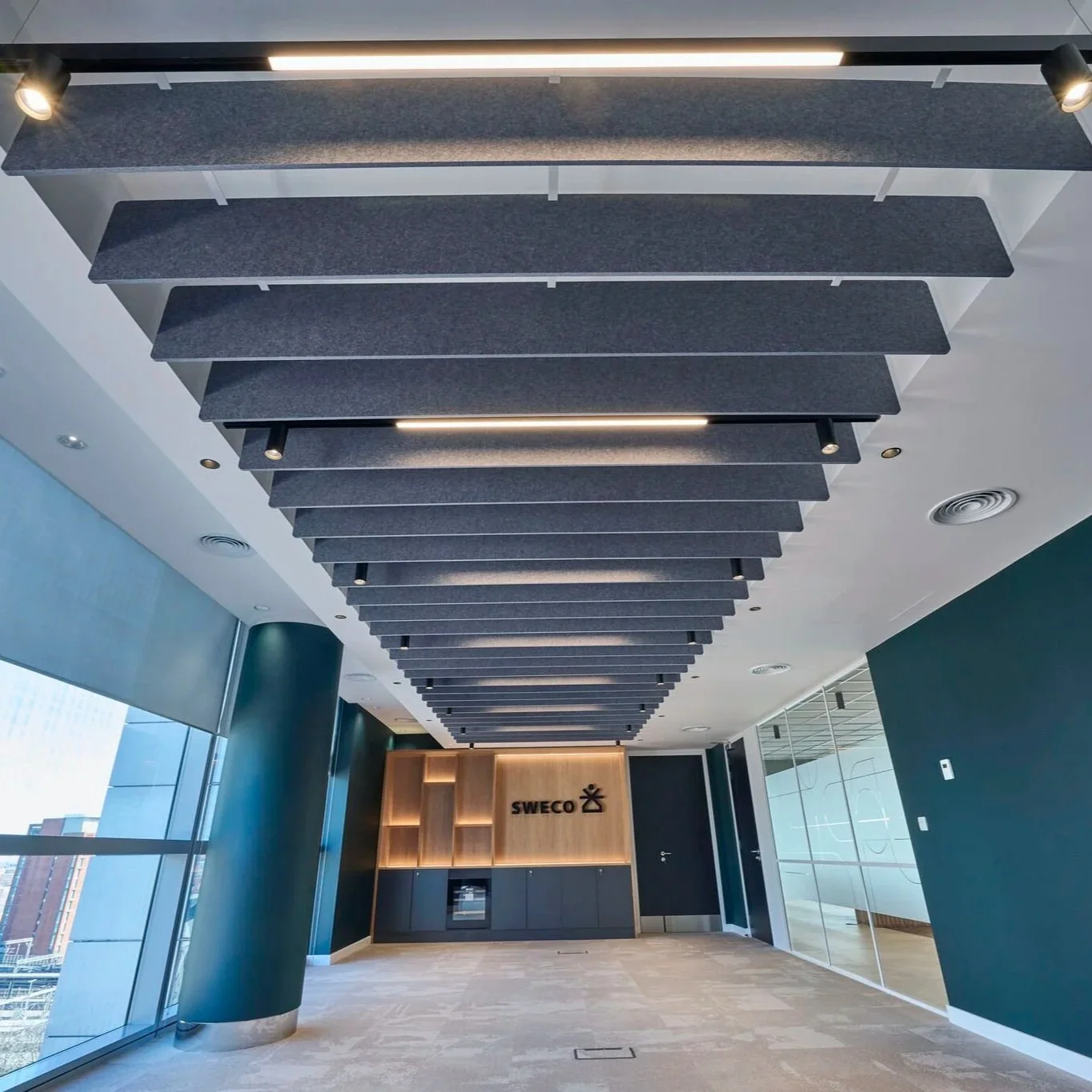

A contemporary, effective, designed solution to reduce reverberation both locally and uniformly within a large space such as public spaces, libraries, canteens, offices, breakout areas, receptions and meeting rooms.

Creative options:
› linear banks of acou.baffles suspended over working desk spaces or
› interject with linear lighting for a quieter interior space that speaks volumes.

Available in 40 colours

Size:
Measurements in mm
200 x 1200 x 12
200 x 1200 x 24

200 x 2400 x 12
200 x 2400 x 24

300 x 1200 x 12
300 x 1200 x 24

300 x 2400 x 12
300 x 2400 x 24

400 x 1200 x 12
400 x 1200 x 24

400 x 2400 x 12
400 x 2400 x 24

(Height x Width x Depth)
Custom sizes available

Materials:
› Composition 100% PET
› 65% post-consumer bottle flake

Properties:
› Antiviral/antimicrobial finish option
› Fully recyclable
› Weight Msq: 12mm 2.4kg 24mm 4.8kg
› Semi-rigid, non-toxic, non-allergenic, non-irritating
› Stable and easy to clean
› Acoustic performance Class A / E
› VOC emissions: <0.02mg / Msq (very low)
› Formaldehyde 0.00UG/g (none)
› Okeo tex: Standard 100 - Class 1 (free from harmful chemicals)
› Easy to fit

Fire Retardant:
› EN13501-1 Class B s1, d0

Absorption Coefficients
› 200mm air gap Aw 0.9 and NRC 0.85
Class A

Designed by acou.space ©

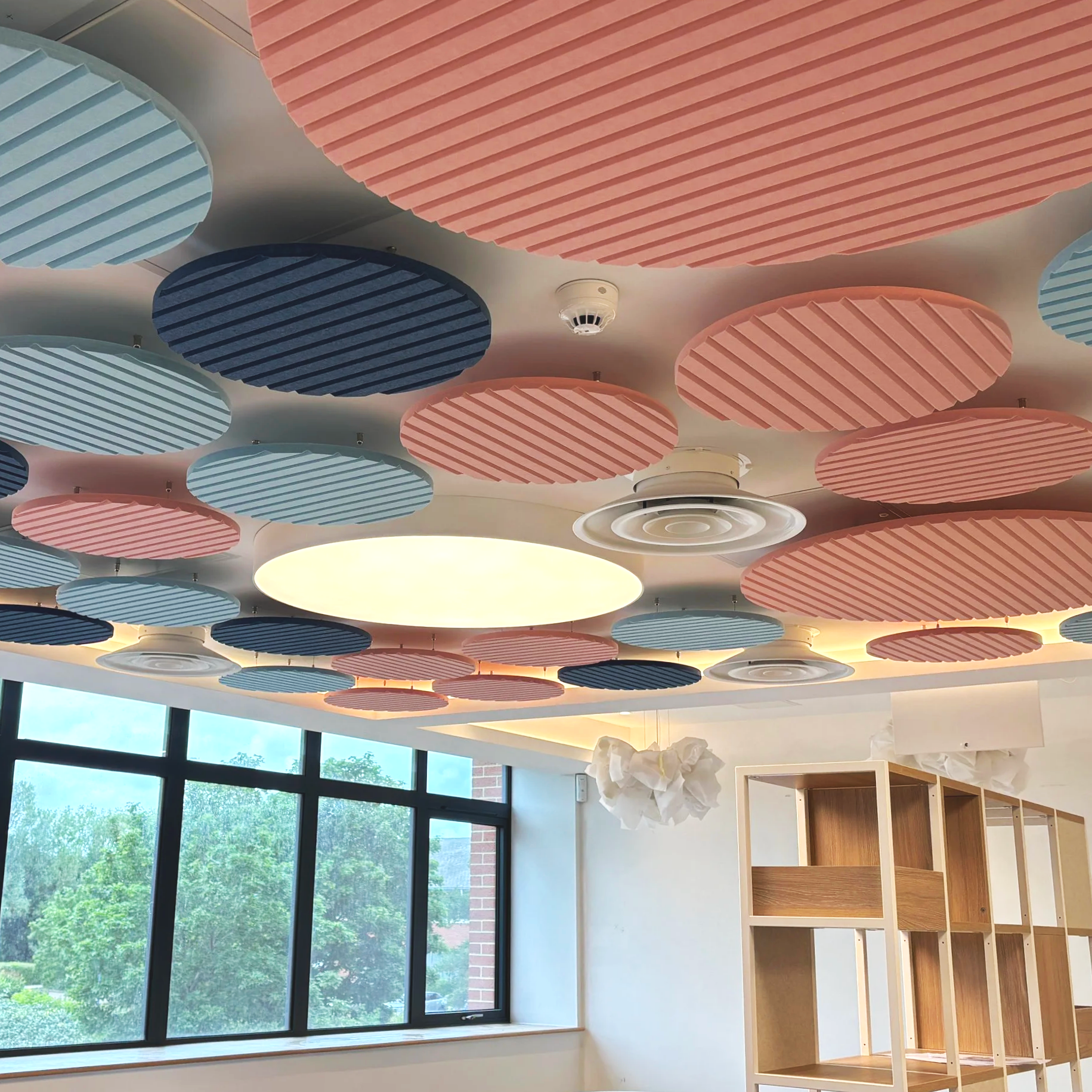

Simply effective, these 24mm acou.felt shapes are supplied with fixings and can be strategically positioned over seating areas, desks or within breakout spaces to absorb extraneous noise.

acou.space will assist with the positioning and design of the acoustic rafts.

Design tips:
- vary the shape of the raft.
- stagger the height of the rafts when fitting.
- print a texture onto the surface of the raft.
- overlay the acou.felt raft with camira sonus or add a v-groove design into the surface to create a patterned two-toned effect.

Materials:
› Composition 100% PET
› 65% post-consumer bottle flake

Properties:
› Antiviral/antimicrobial finish option
› Fully recyclable
› Weight Msq: 12mm 2.4kg 24mm 4.8kg
› Semi rigid, non-toxic, non-allergenic, non-irritating
› Stable and easy to clean
› Acoustic performance Class A / E
› VOC emissions: <0.02mg / Msq (very low)
› Formaldehyde 0.00UG/g (none)
› Okeo tex: Standard 100 - Class 1 (free from harmful chemicals)
› Easy to fit
› Each panel weighs 0.4kg including fixings

Fire Retardant:
› EN13501 B-S1, d0

Absorption Coefficients
› 200mm air gap Aw 0.9 and NRC 0.85
Class A

Designed by Acou.Space ©

Suspended Baffles acou.felt

box baffles are a contemporary and innovative alternative to traditional sound-absorbing solutions such as rectangular baffles or wood slats.

designed with a unique box structure. Highly effective in trapping and absorbing sound waves.making acou.felt box baffles an ideal choice for environments requiring high-quality acoustics.

as sound waves enter a room, they bounce off surfaces and create unwanted echoes and reverberations.

box baffles disrupt this process with their box-like shape and internal air gap, causing sound waves to dissipate energy and reduce in intensity. this results in a much quieter and more controlled acoustic environment.

size:
measurements in mm
L1200 H50 D50

L1200 H67.5 D65

L2400 H50 D50

L2400 H67.5 D65

L2700 H50 D50

L2700 H67.5 D65

Custom sizes available

Materials:
› Composition 100% PET
› 50% post-consumer bottle flake

Properties:
› Antiviral/antimicrobial finish option
› Fully recyclable
› Weight Msq: 12mm 2.4kg 24mm 4.8kg
› Semi-rigid, non-toxic, non-allergenic, non-irritating
› Stable and easy to clean
› Acoustic performance Class A / E
› VOC emissions: <0.02mg / Msq (very low)
› Formaldehyde 0.00UG/g (none)
› Okeo tex: Standard 100 - Class 1 (free from harmful chemicals)
› Easy to fit
› Each panel weighs 0.4kg, including fixings

Fire Retardant:
› EN13501-1 CLASS B s1, d0

Absorption Coefficients
› 200mm air gap Aw 0.9 and NRC 0.85
Class A

Designed by acou.space ©
