Specifications

Size

• Dimensions (H × W × D) in mm:

  Max size per panel

  • 2790 × 1200 × 12

  • 2790 × 1200 × 24

Fixings

• Silicone Adhesive (contact for more information)

Material

• Composition: 100% PET (65% post-consumer bottle flake)

• Fully recyclable

Fire Rating

• EN13501: B-s1, d0

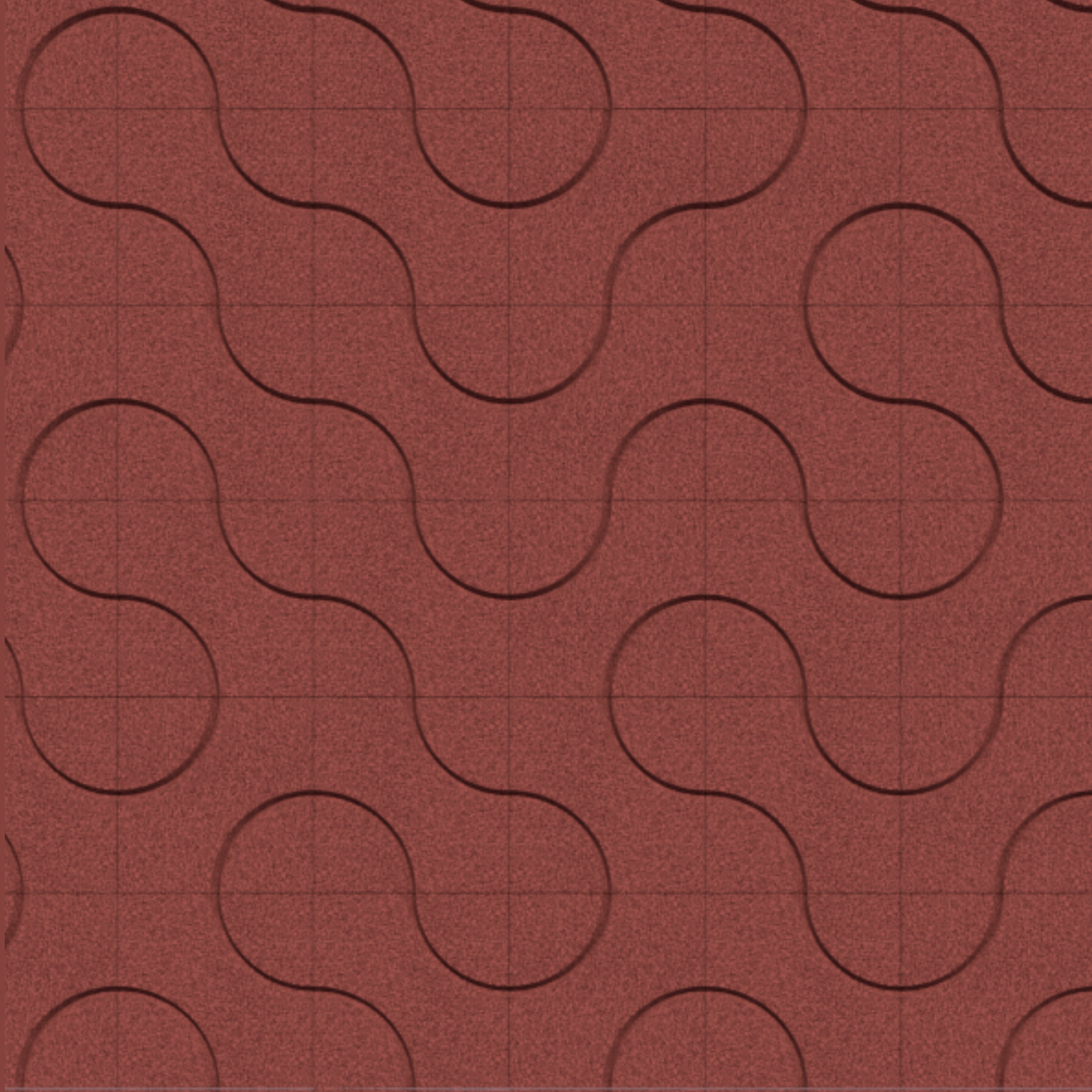

Panel Design

• Choose from Core Collection, or custom design service

• Sizes can be modified to suit project

• Intermediate skill level required for fitting

Product Properties

• Optional antiviral/antimicrobial finish

• Weight per m²:

  • 12mm: 2.4kg

  • 24mm: 4.8kg

• Semi-rigid, non-toxic, non-allergenic, non-irritating

• Stable and easy to clean

• Acoustic performance: Class A / E

• Fire retardant: EN13501 B-s1,d0

• VOC emissions: <0.02mg/m² (very low)

• Formaldehyde: 0.00μg/g (none)

• OEKO-TEX® Standard 100 – Class 1 (free from harmful chemicals)

Acoustic Performance

12mm Panels:

• No air gap: αw 0.25 / NRC 0.41 Class E

• 50mm air gap: αw 0.65 / NRC 0.76 Class C

• 200mm air gap: αw 0.90 / NRC 0.92 Class A

• Acoustic Class: E / A

24mm Panels:

• No air gap: αw 0.5 / NRC 0.70 Class D

• 50mm air gap: αw 0.85 / NRC 0.89 Class B

• 200mm air gap: αw 1.0 / NRC 0.97 Class A

• Acoustic Class: D / A
