Create Quieter Spaces with Sound-Absorbing Acoustic Wall Tiles
Acoustic Wall Tiles are a versatile solution for reducing reverberation while adding a striking design element to your interior.
Crafted from high-quality acoustic felt, these tiles combine form and function. Offering a wide range of sizes and colours to suit any style. Manufactured in the UK, they deliver both decorative appeal and effective sound absorption.
Ideal for walls and suitable for certain ceiling applications, Acoustic Wall Tiles bring a contemporary touch to commercial and residential spaces alike. From meeting rooms and open-plan offices to reception areas, breakout zones, and home offices.
They also serve as a stylish and practical alternative to traditional pinboards.
Sizes
Hexi
H231 W200 D12, 24
H600 W519 D12, 24
H1200 W1040 D12, 24
Step
H200 W400 D12, 24
H300 W300 D12, 24
H300 W600 D12, 24
H400 W400 D12, 24
H600 W600 D12, 24
H600 W1200 D12, 24
H1200 W2400 D12, 24
Tri
H300 W268 D12, 24
H490 W425 D12, 24
H400 W347 D12, 24
H600 W520 D12, 24
H1000 W866 D12, 24
H1200 W1039 D12, 24

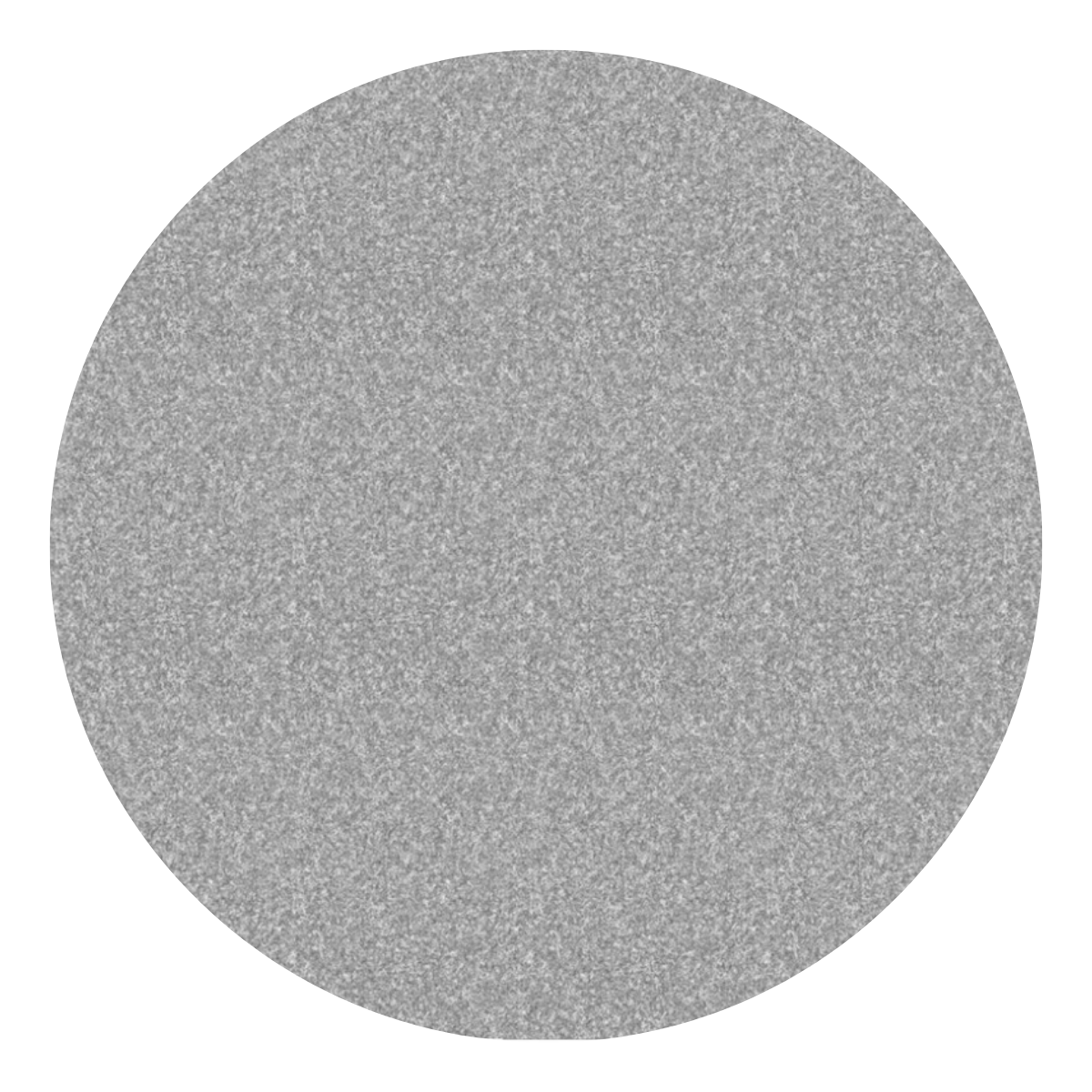

cIRCLE
Dia 100 D12, 24
Dia 200 D12, 24
Dia 300 D12, 24
Dia 600 D12, 24
Dia 900 D12, 24
Dia 1200 D12, 2
Specifications
Fixings
Adhesive
Material
Composition: 100% PET (65% post-consumer bottle flake)
Fully recyclable
Fire Rating
EN13501: B-s1, d0
Additional Information
Interchangeable modular design with HEXIE and STEP ranges
Basic to intermediate skill required for fitting
Product Properties
Optional antiviral/antimicrobial finish
Semi-rigid, non-toxic, non-allergenic, non-irritating
Stable and easy to clean
Weight per m²:
12mm: 2.4kg
24mm: 4.8kg
Acoustic performance: Class A / E
Fire retardant: EN13501 B-s1,d0
VOC emissions: <0.02mg/m² (very low)
Formaldehyde: 0.00μg/g (none)
OEKO-TEX® Standard 100 – Class 1 (free from harmful chemicals)
Acoustic Performance
12mm Tiles:
No air gap: αw 0.35 / NRC 0.45 (Class E)
87mm air gap: αw 0.85 / NRC 0.65 (Class C)
200mm air gap: αw 1.0 / NRC 0.95 (Class A)
24mm Tiles:
No air gap: αw 0.50 / NRC 0.65 (Class D)
87mm air gap: αw 0.90 / NRC 1.0 (Class A)
